Welcome to this tutorial introducing Pact and JavaScript! The goal of this tutorial is to help you connect your Pact development environment to a front end application.

Topics covered in this tutorial

Having at least a basic understanding of each of the following topics will help you be successful in this tutorial.

Subscribe to our YouTube Channel to access the latest Pact tutorials.

This tutorial runs through a working demonstration of a simple todo app. The app will look like this.

It allows you to organize your agenda by adding tasks with due dates that you can later update or delete if needed. You can add, complete, and clear tasks, and you can view tasks based on their status.

Like other Todo apps, it’s a great way to look at the basic functionality of the language while creating a useful app that you can use for yourself.

You can find the Github page for this todo app from the Pact language GitHub page here. If you’d like, you can try putting together the application from this documentation, and if you’d prefer, you can follow along with this tutorial where I’ll go through each step in detail.

There’s a lot going on in this tutorial. If you stick with it, it’s totally worth it. While this setup helps you get up and running with the todo app, it’s also the same setup you’ll use for many other Pact applications.

Before getting started on the project, there are a few project dependencies you will need to run the application on your local computer. In this section, you’ll install each of these dependencies to get ready to run the TodoMVC locally.

Dependencies

Note that Pact 3.0 or higher is required for this tutorial. You can check your Pact version using the following command.

Take some time now to re-install Pact if it is a version lower than 3.0.

To create a JavaScript application on your computer, you’ll need to install and run Node.js.

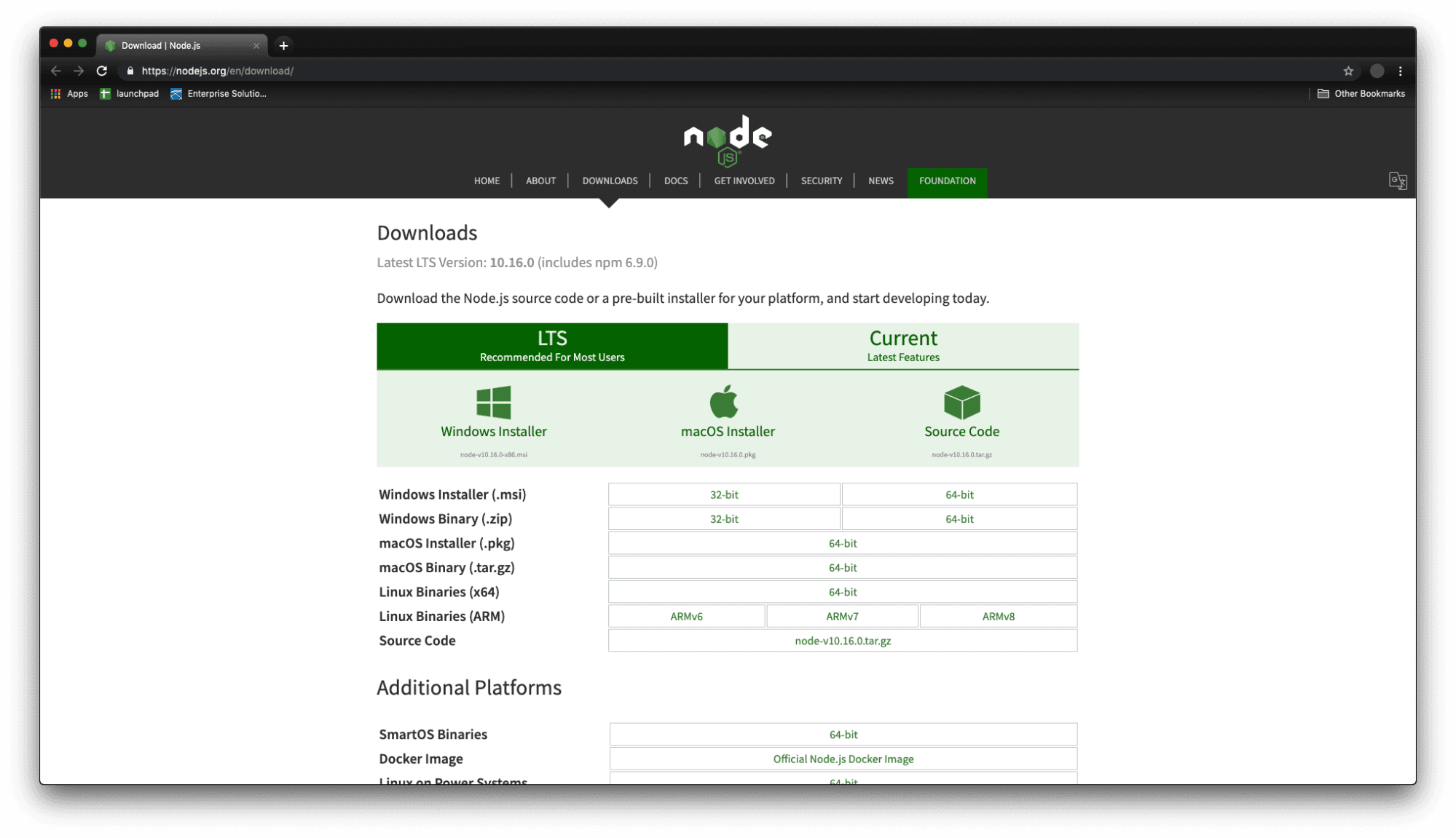

If you don’t already have this on your computer, you can navigate to Download | Node.js to get started.

Make sure to install a node version >= 8.11.4

You can check your version using the following command in your terminal.

Now that you’ve installed Pact and Nodejs, you can clone the project files into a local directory.

From your terminal, navigate into the project directory where you’d like to create the application.

Clone the Pact-todomvc application.

Change into the todo-mvc project directory.

Pact features a full REST API HTTP server and SQLite database implementation. The Pact server simulates a single-node blockchain environment and will help you store and manipulate test data for your application.

Application data for the server is stored within a log folder.

To get started, you need to create the log folder within your project directory.

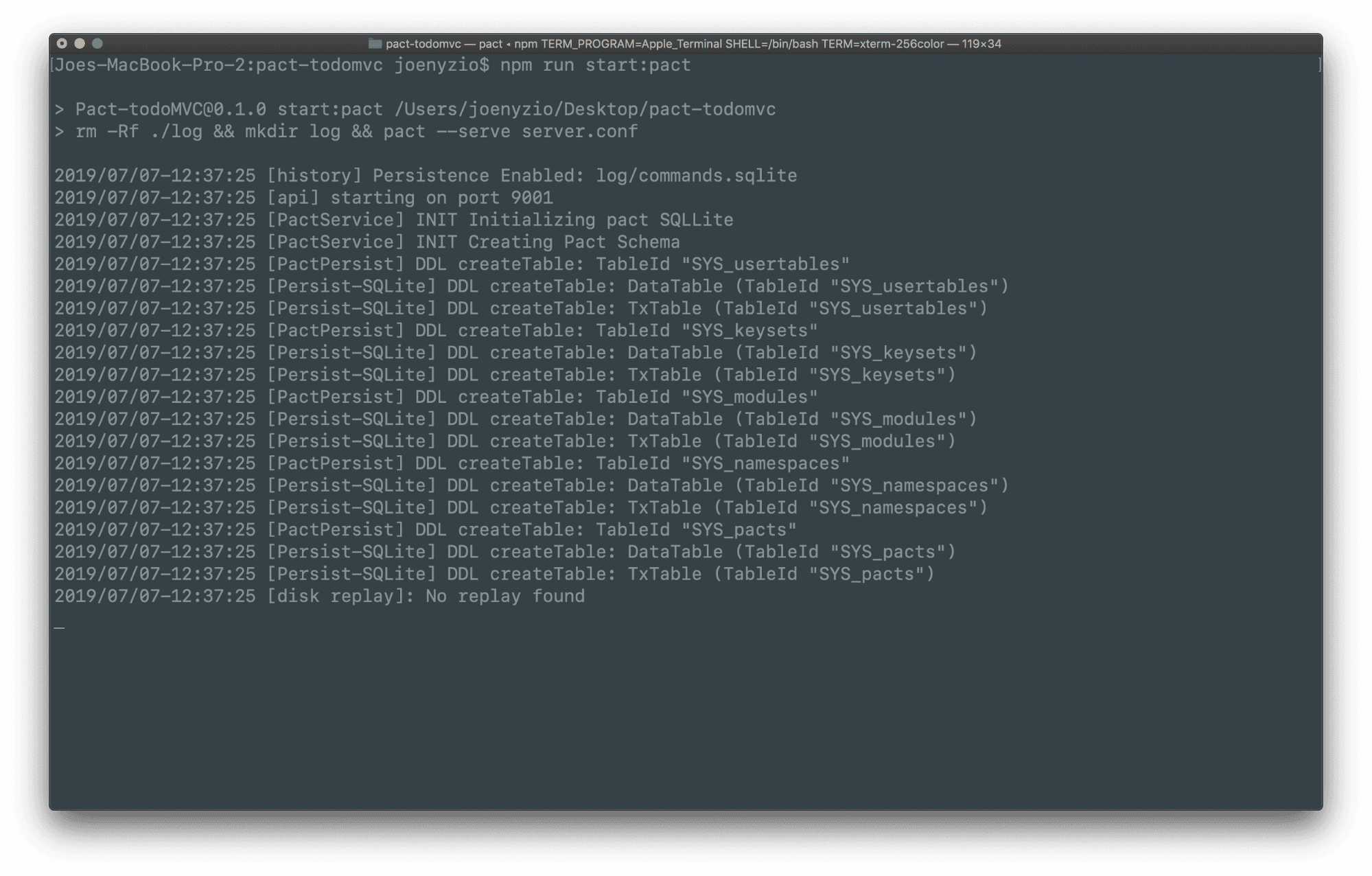

Next, run the following command to start the Pact server.

This Pact server will provide a log of each action that takes place on the application.

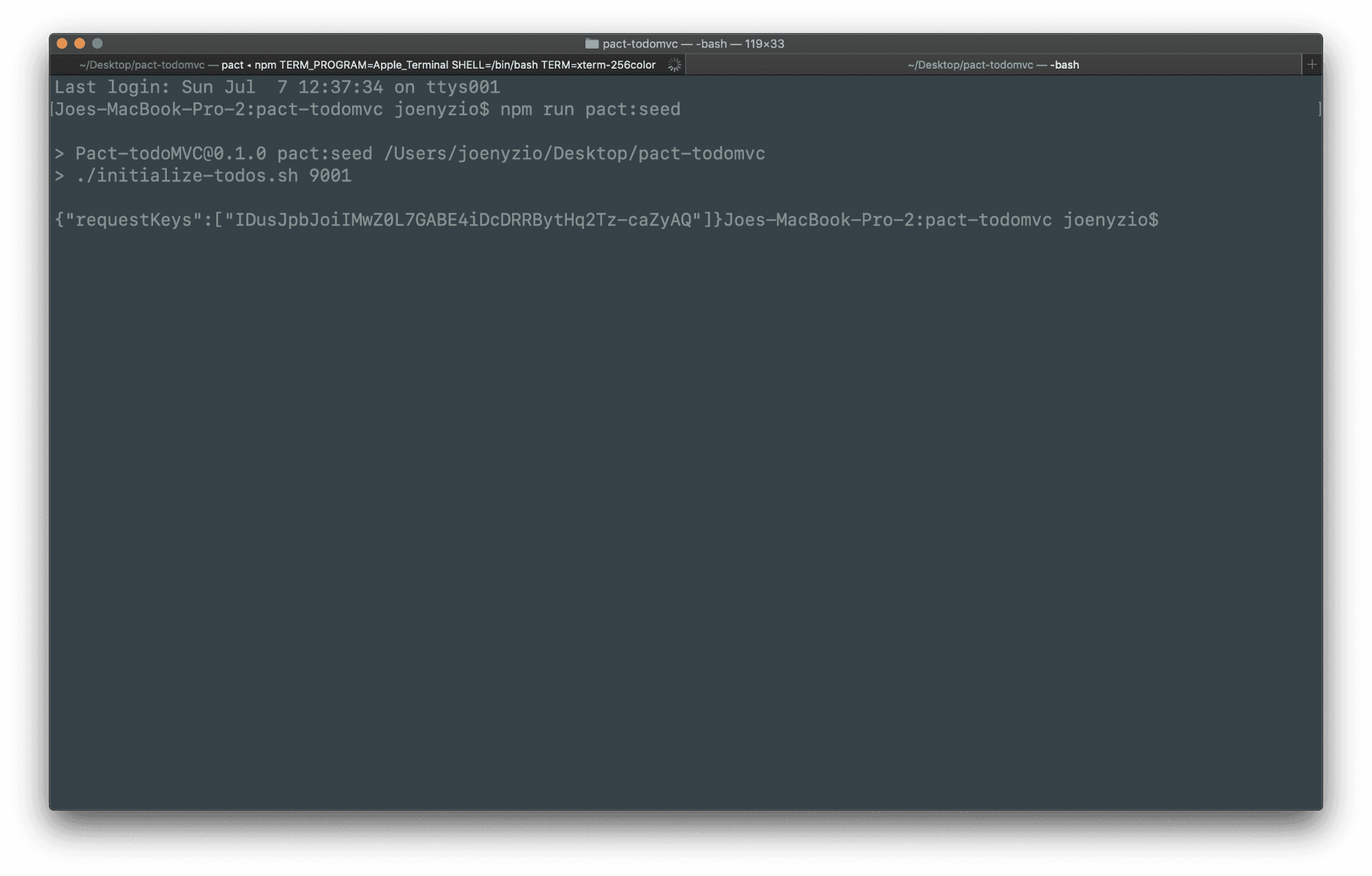

Finally, open another terminal window within the same directory and run the following command to seed data into your application.

The initial seed data will include the status and response shown as a hash value.

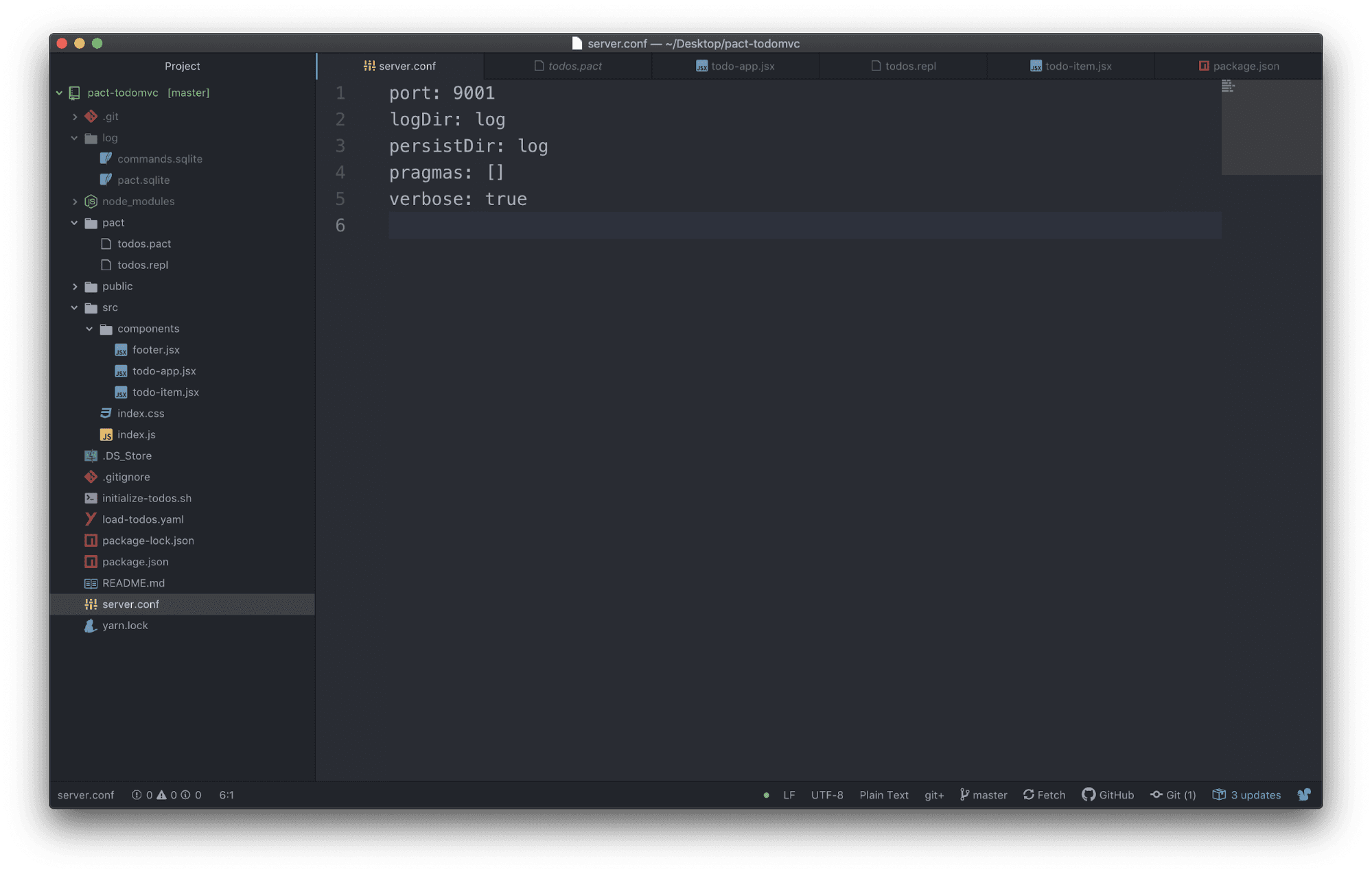

Finally you can see how both start:pact and pact:seed are working by looking into the package.json file. Under scripts, you can see that start:pact is set to call the server.conf file and that pact:seed is set to call the initialize-todos.sh file.

The script to run this part is also saved in package.json file, so we can simply run npm run Pact:seed.

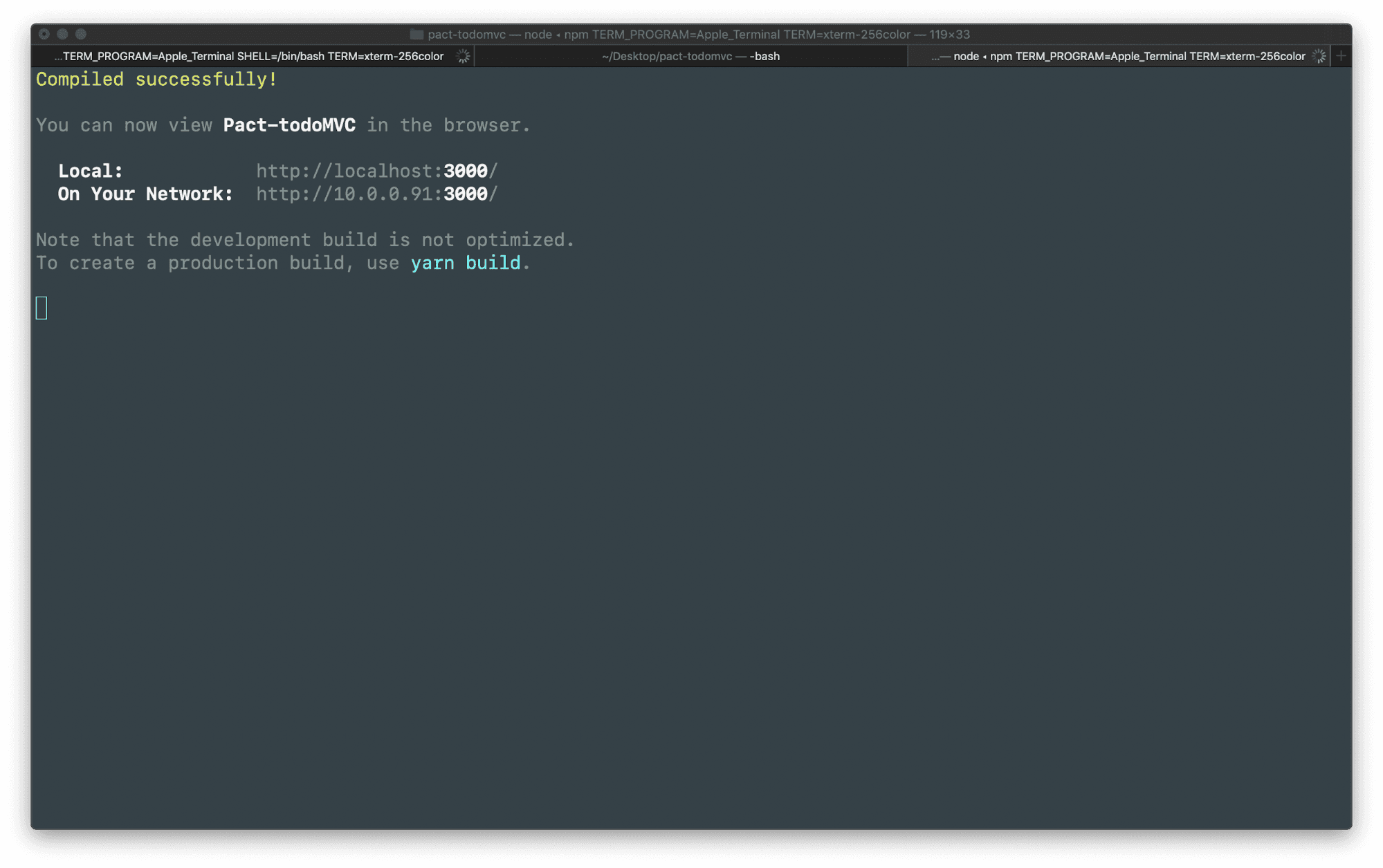

After starting the Pact server and seeding the blockchain, you can now start the web application on your local server.

The project is now available for you to view on your localhost! When you ran npm start your browser may have opened automatically to the application. If not, you can open to http://localhost:3000 to view the application now.

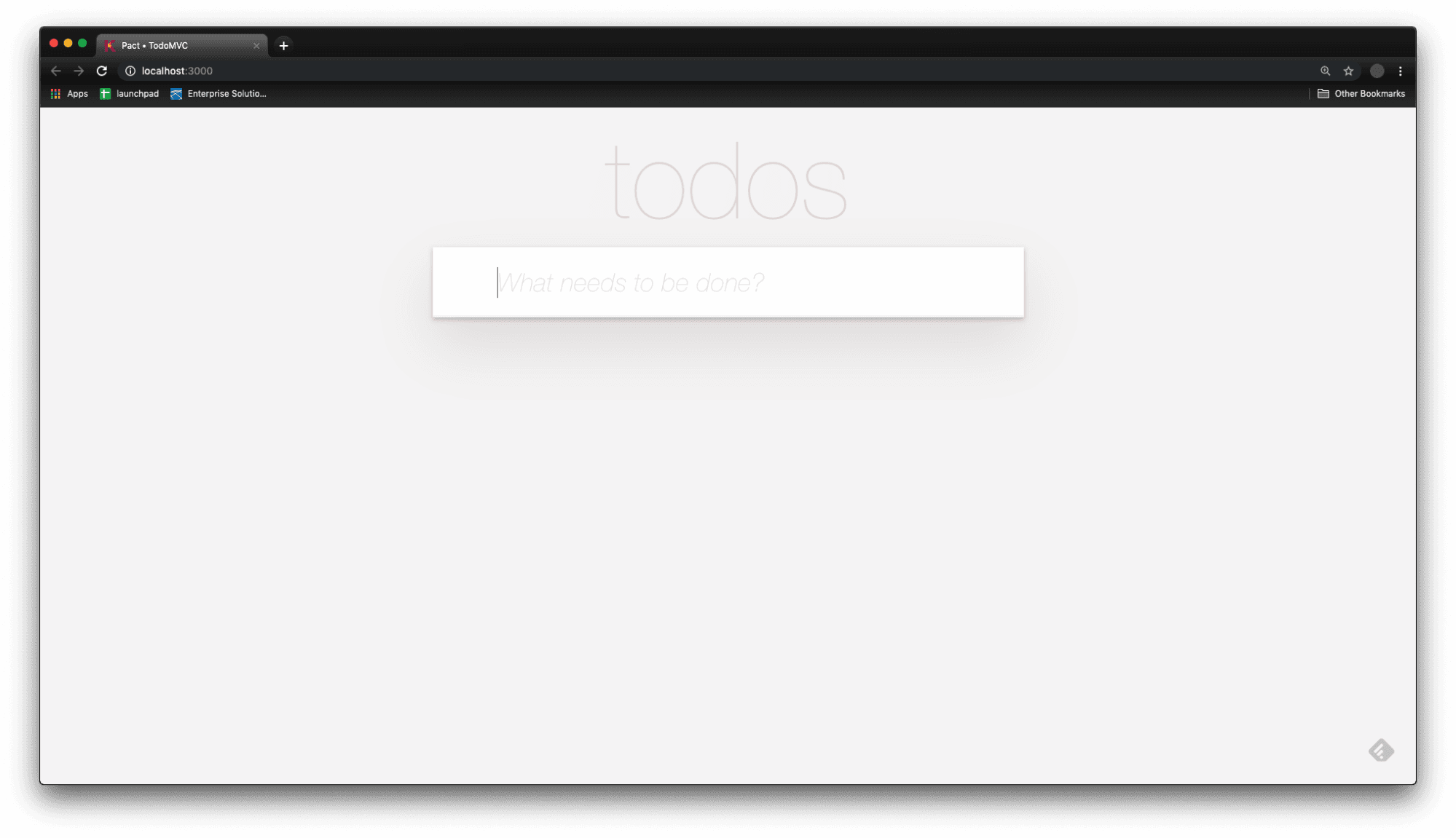

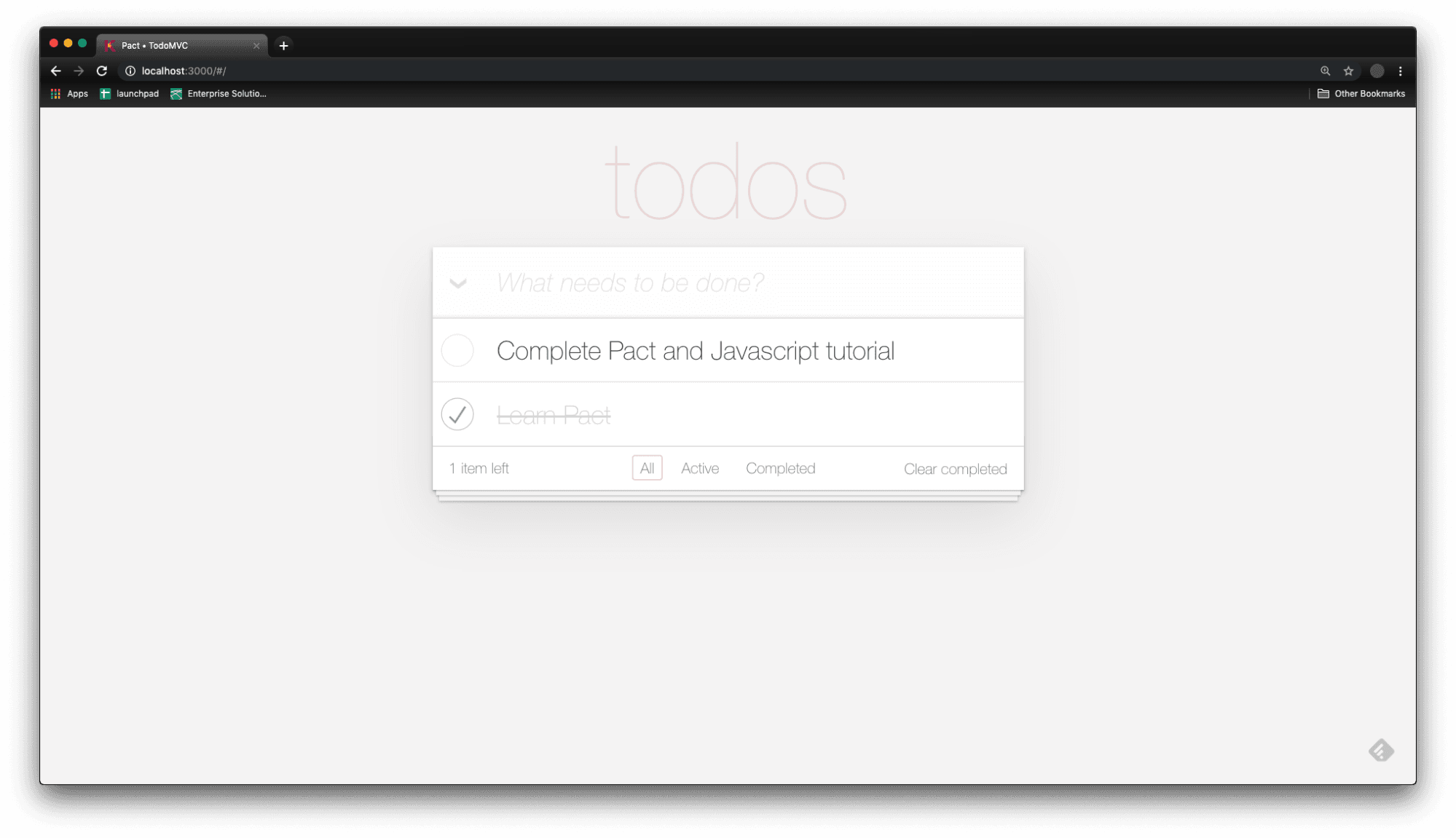

The todo app should currently look like this in your browser.

Now that the app is running, try entering some Todos to get used to the functionality of the app.

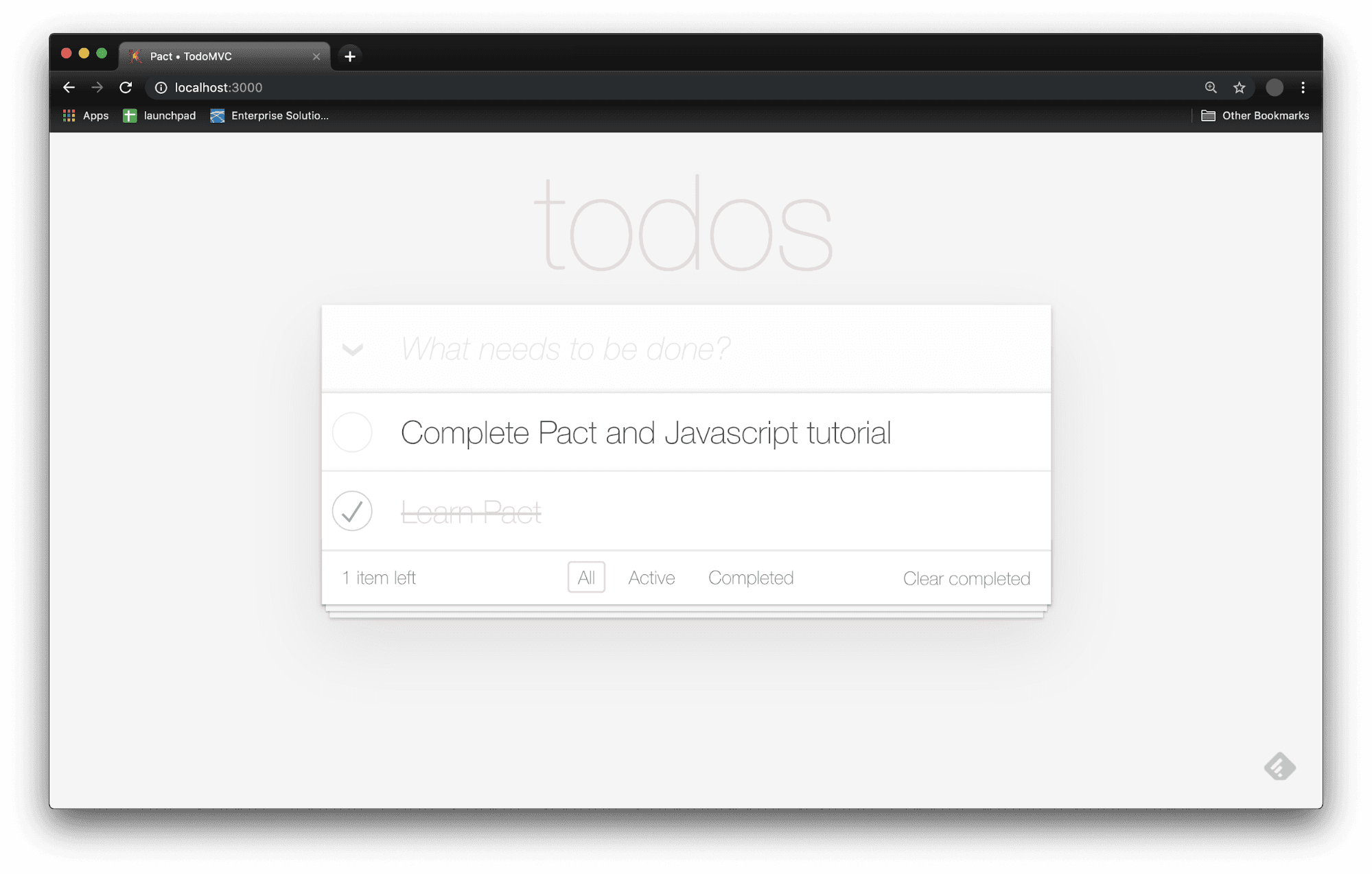

In my application I’ll add the following tasks.

Next, I’ll complete one of the tasks I created.

Feel free to add whatever todos you would like to get a better feel for the application. Coming up you’ll take a look at the project files along with the data you generated.

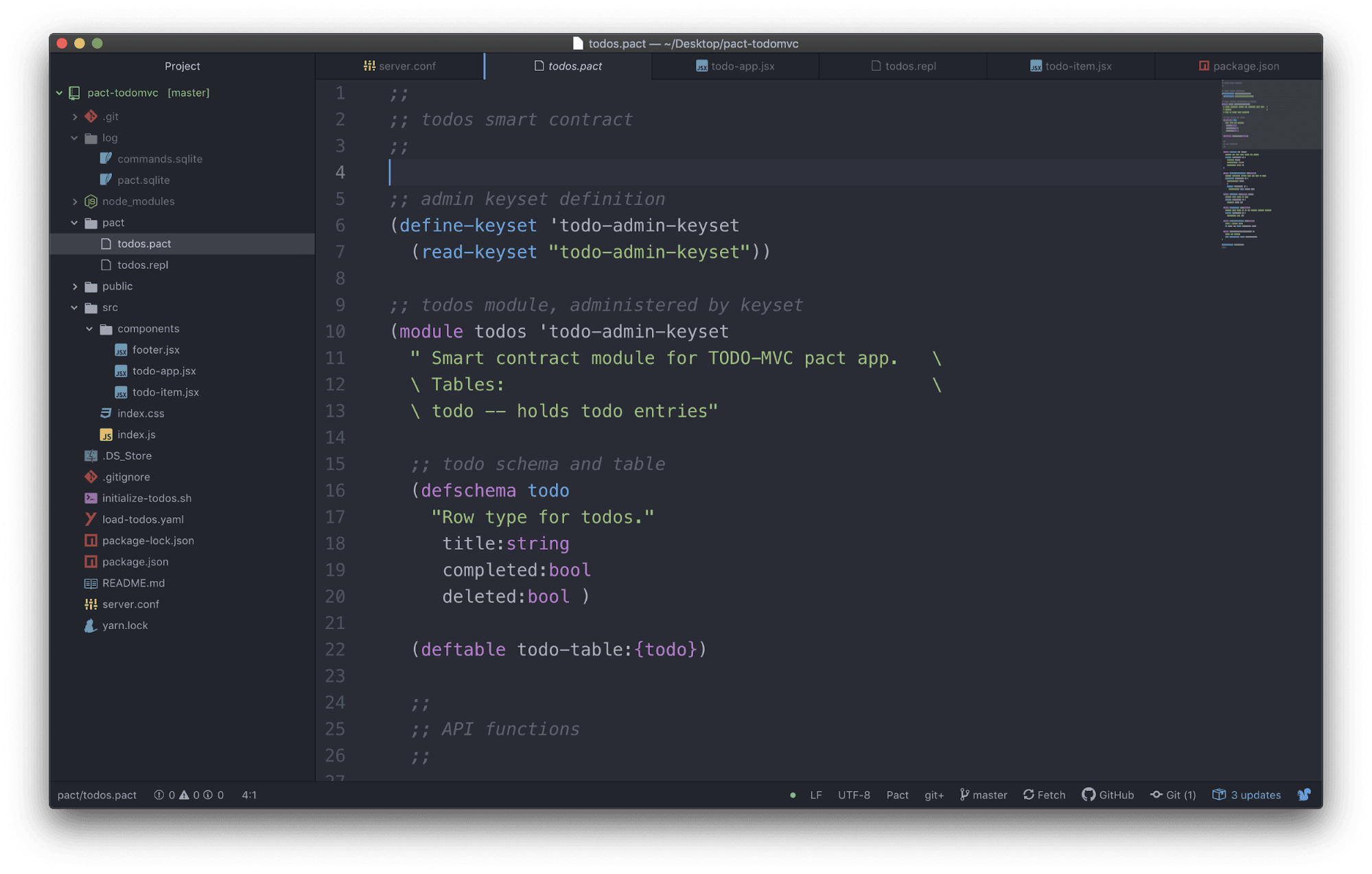

Having a feel for how the application works, you can now view the project files. To view these files, open a new terminal within the project directory and type the following command to open the project.

Within the project folder are each of the files installed from the project repository, the dependencies installed with npm install, and the files you created yourself. Most of these files are specific to the front end side of this web application, but the ones unique to the Pact application are in the log folder and Pact folder.

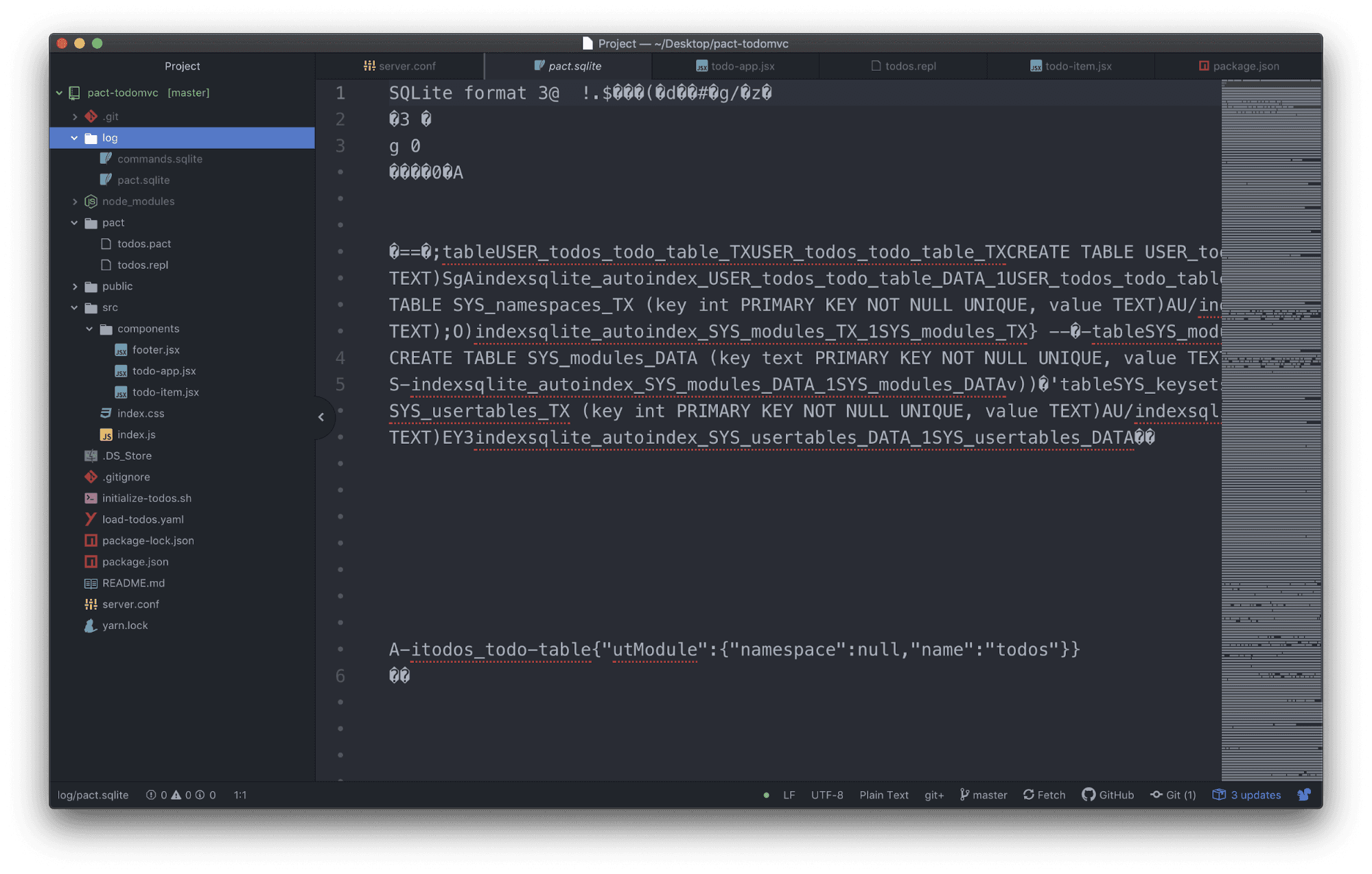

View the log folder you created earlier to see that it’s now filled with sqlite files. These files are a sort of emulated blockchain that you can use to create tables and store or retrieve data.

The Pact folder contains the .pact and .repl files that build, run, and test the smart contract. In here you’ll see todos.pact and todos.repl. The .pact file is the smart contract for this application, and the .repl file is what loads and runs tests on the Pact file.

Inside of the src folder you will see the front end code for this application including the components, html, jsx, and css files. This is a react application, but the front end could use any library or framework you prefer.

If you’re unfamiliar with react you can visit React - A JavaScript Library for Building User Interfaces to get started with react applications.

To understand how each of the UI elements are working with the database, take some time to view the Pact smart contract. As you’ll see, there is a single todo table that you can access using a variety of functions as shown below.

Here is the schema of the todo table.

Here is a list of functions from the smart contract along with their purpose.

As a quick refresher of what this Pact code is doing, here is a look at the code used to create the todo table and add a new todo.

Here you can see a schema is defined for a table named todo that is later defined and created. This table includes rows for title, completed, and deleted.

The function new-todo adds a todo using the title input generated by the user. The application assigns the title a specific ID and uses that to generate the title as specified by the user, and an initial completed and deleted status of false.

A lot of the remaining code works similar to new-todo with slightly different functionality based on its purpose. Take some time to review each of these functions now to familiarize yourself with the application.

React uses the pact-lang-api to interact with Pact and update the database depending on the actions of the user. An understanding of the entire application takes some background in React and JavaScript. For this tutorial, we’ll focus on the functionality that is specific to interacting with Pact.

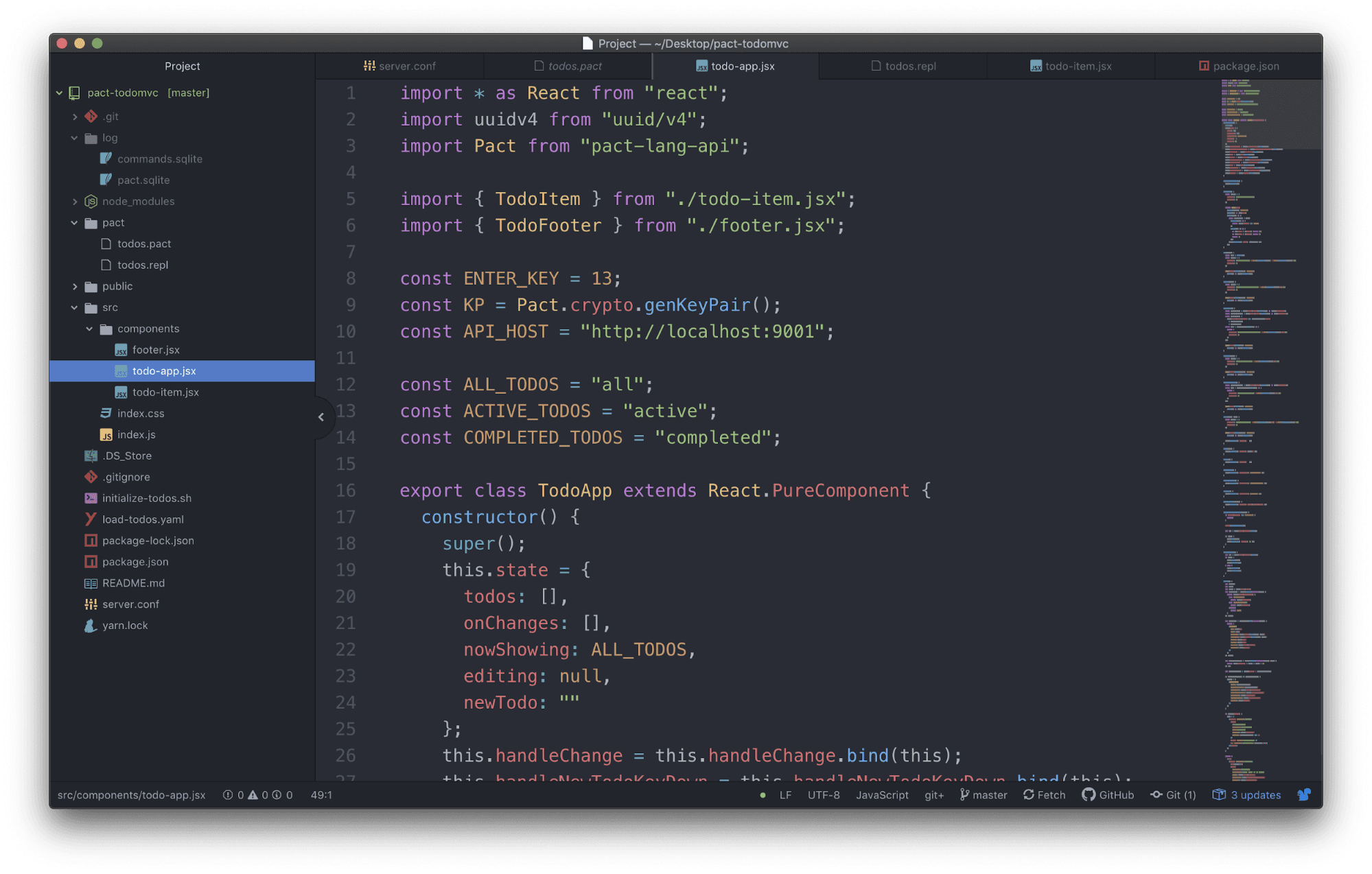

To get started, navigate to src > components > todo-app.jsx

Within this file, you’ll see the consts, component, functions, and rendering used to connect react to Pact.

First, note that aside from a few standard react imports, this file also imports Pact from the Pact-lang-api, as well as the TodoItem and TodoFooter.

There are also a few constants set that you’ll see used throughout the functions below including KP - which calls a specific function within the pact lang api to generate a keypair, API_HOST, and consts related to the TODO state within the database.

Here’s a quick overview of how each of their functions are associated.

One thing to note here is delete-todo, which can be a bit misleading. You can’t actually delete data from a blockchain, so rather than delete the data, it toggling the status of the delete field to true.

Let’s look at one example in detail. In this case we can look more closely at how add() calls new-todo from todos.pact.

This function is called by add().

This function is used to add a todo to the database and display it on the website for the user.

Here are some details about how this function works to add and display a new todo onto the application.

Next, you’ll see Pact.fetch.send which is a request to execute a command on the pact server.

In this function, pact.fetch.send includes the cmdObj built above, along with a specified API_HOST. This API_HOST is the constant set above, and is the localhost:9001 that you saw the pact server initiate from your terminal.

Once that’s done the todo is in the database. The last step is to show this data on the website for the user.

That’s where this last line comes in. After sending the data to the database, this line calls getTodos() which is another function in this JavaScript file. This function is what fetches data from the database and displays it on the website.

It looks like a lot, but having seen the add function in depth, see if you can parse out what is going on in this function.

At this point you should be in a good place to continue playing around with the TodoMVC application.

Try experimenting with the look and feel of it to make it your own. Later you can try tweaking the code to see how it affects the application, and finally you can try writing your own functions that extend the functionality of this application to do whatever you’d like.

As a quick recap, you installed each of the dependencies required to create a full stack blockchain application with pact. From there, you set up the todoMVC project, investigated the project files, and then dove into the details of how pact and JavaScript communicating using the pact-lang-api.

After getting comfortable with this application, you’ll be in a great place to build applications of your own for entirely different use cases.
